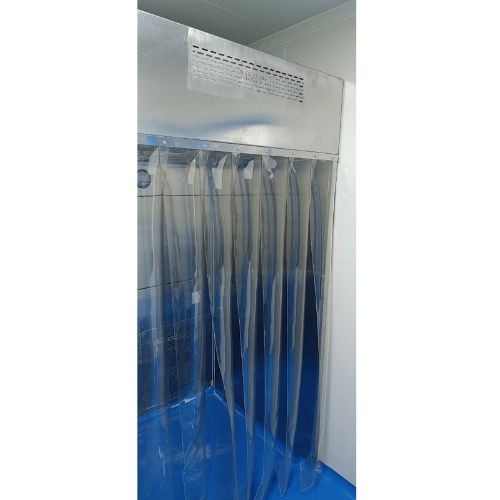

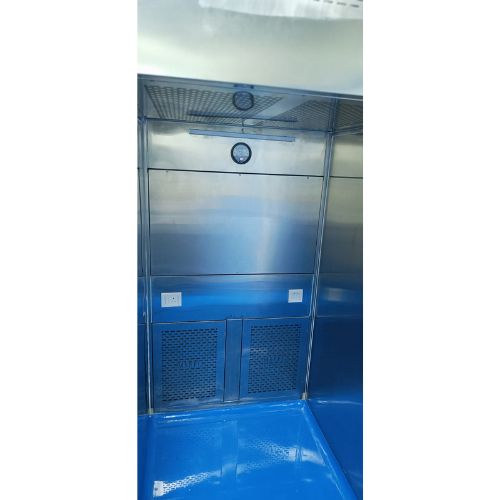

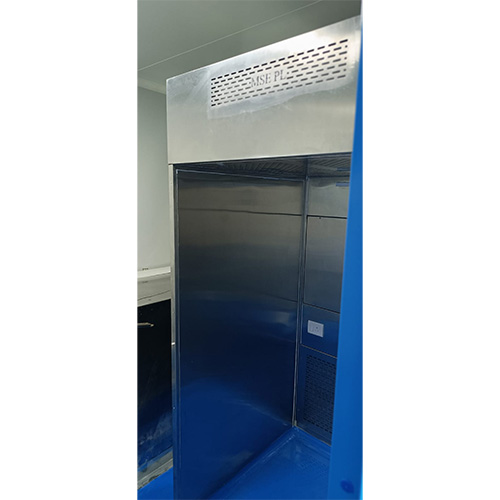

Dispersing booth

Key Features

Dispensing booth is a kind of purifying equipment for materials sampling, weighing, and analysis.
Dispensing booth is also called a sampling booth, a weighing booth, a downflow hood, RLAF (reverse airflow), or a powder containment booth.
It uses the laminar airflow technique with the aim of providing dust containment and operator protection while filling, weighing, and sampling harmful components, active ingredients and raw powder materials.
Dispensing booth provides a unidirectional airflow (laminar airflow), in which most of the clean air enters the working zone.

Description
Application

Description

Dust, especially dust generated during the production process can be toxic. If dust is not filtered and controlled, it not only causes environmental contamination but also threatens workers' health and safety.

In the pharmaceutical industry, the manufacture of drugs can generate hazardous dust, especially when weighing, dispensing materials in powder form. Therefore, dispensing booth is important. As a result, it is also called a pharmaceutical (powder) weighing booth, or pharmaceutical sampling booth.

Application

Material	Stainless steel SUS304 / SUS 316
Filtration	3-stage filtration - Pre-filter - Fine filter - HEPA filter
HEPA filter	99.98% at 0.3 micron
Pre-filter	G4 (90% arrestance at 10 microns)
Fine filter	F8 (90% at 0.4 micron)
Air velocity	0.45 m/s ± 20%
Noise	<75 dB
Power supply	Three-phase 380V/50Hz
Differential pressure gauge	3 pcs
Curtain	PVC curtain / Air curtain
Illumination	LED lighting
Controller	Smart LCD touch screen
