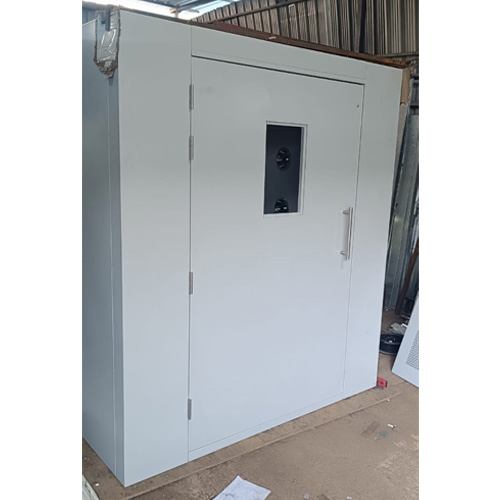

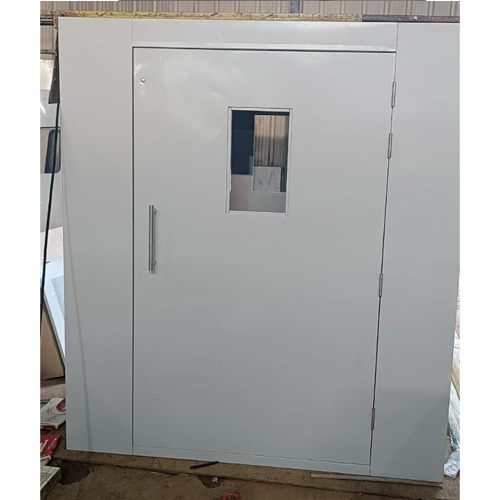

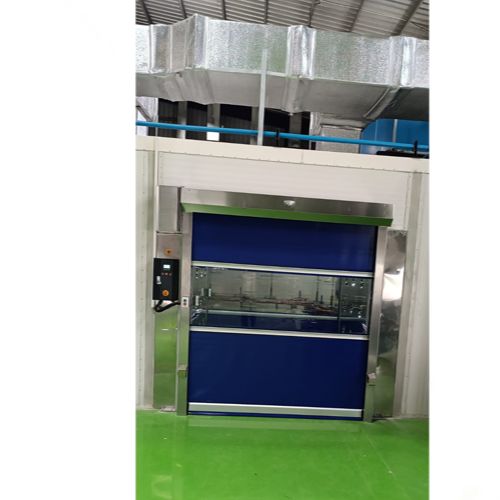

Air Showers

Key Features
  • Good manufacturing practice (GMP) / Good laboratory practice (GLP) compliant systems
  • Designed to ensure lowest noise and vibration level is < 60 db
  • Power failure, automatically all doors are unlocked Optional parts
  • Easy to fix (Install) and operate (Function)
  • Offered in both standard and custom-made configurations
  • All operations are Programmable (Blower On/off, Interlocking, Shower duration)

Description

The air shower is mounted at entrance to scrub area and different sterilized space. it's employed in effectively manner for purification by high potency of (HEPA) filtered air reduces the contamination. The dirtied air is pure and re-circulates through pre-filters inside the unit.

Air shower chamber area unit classifieds for human and material entries. it's the foremost effective for self-controlled and clearing off mud particles from room personnel to scale back the contamination of merchandise and room equipments.

The air shower system is associate degree car controlled interlocking systems for entrance, specified the entry and exit doors area unit electronically interlocked and photoelectrical device suited. Air shower systems area unit created (Constructed) from SS304, GI powder coated, EPOXY painted.

Specification

  • The main function of the air shower is purify the dust air it is used HEPA filter (0.3micron) and Pre filter
  • A disposable / washable pre-filter with 90% arrestance of dust air to extends the life of the main HEPA filter
  • The AIR THRU Nozzle is two types adjustable and ordinary
  • Hepa filter (0.3 micron)
  • Stainless steel 304 or Galvanized
  • Emergency switch/fluorescent lamp
  • The Air shower system is auto controlled interlocking systems, the entry and exit door is electronically interlocked, and Photoelectric sensor suited
  • Air shower systems is made (CONSTRUCTION) from SS304 , GI POWDER COATED
  • Air thru nozzles, handls, hingess, doors are made from stainless steel 304
  • The Airshower system design is modular type, it is easily to transport and assembly anywhere
  • Air shower duration time is adjustable from 10 sec to 99sec, and finished air shower time is displayed

Application

  • Filtered air is rejected through nozzles at high velocities into the chamber.
  • These turbulent air streams disperse particulate matter on all surfaces.
  • Dispersed particulate matter migrates with the air stream towards the lower areas in the air shower chamber.
  • Air showers keep pharmaceutical production and work animal breeding areas clean and additionally minimize egress of dangerous substances and allergens from the controlled atmosphere.
  • Air is forced by the blower(s) through ULPA filter(s) which are >99.999% efficient against particles size between0.1 to 0.3 microns.
