Drainage Cells

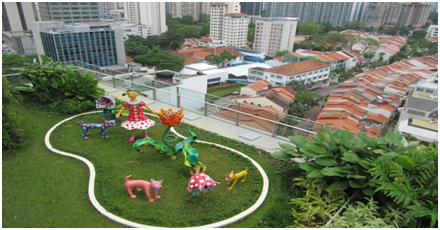

The product was developed to facilitate adding Roof Gardens and Planter Boxes to building constructions without adding heavy aggregate as drainage that placed severe limitations on the structural design of the building. Drainage Cell is a versatile product which is suitable for many applications including drainage of sports field, civil works, retaining walls and landscaping applications.
Drainage Cell sizes:
- 20 MM
- 30 MM
Benefits:
- Efficiently drains excess water while retaining an optimum moisture level
- Lightweight
- Strong Structural Design
- Quick Installation
- Biological Resistant
- 90% Void Ratio (High Infiltration)
Technical Specifications
20MM:
| 1 | Size: | 20MM X 250MM X 500MM |
|---|---|---|
| 2 | Color: | Black |
| 3 | Material: | 100% Recycle PP |
| 4 | Weight/Sqft: | 220 GMS |
| 5 | Compressive Strength: | 100 to 120 ton/m2 |
30MM:
| 1 | Size: | 30MM X 250MM X 500MM |
|---|---|---|
| 2 | Color: | Black |
| 3 | Material: | 100% Recycle PP |
| 4 | Weight/Sqft: | 270 GMS |
| 5 | Compressive Strength: | 120 to 130 ton/m2 |
